Samsung OfficeServ 100 - Samsung Phone Systems

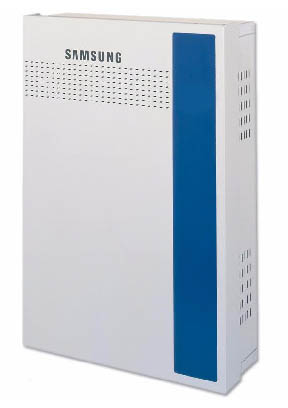

Samsung iDCS OfficeServ 100 KSU Cabinet

The OS 100 Key Service Unit is a metal cabinet containing the following: One Page Output One MOH/BGM input source (switch selectable between internal chimes and external input) 8 2B+D Digital Keyset digital phone Interfaces Processing, switching and power management Power Supply (120 VAC) with a battery backup (48 VDC) connection The OS 100 KSU comes configured with 0 trunks and 8 2B+D DLI telephone station Ports There are two types of expansion cabinets available for the OS 100. The cabinet is attached to the right of the basic KSU and connects via a ribbon cable and two 2 pairs of wires.

Samsung OfficServ 2/2 Slot Expansion Cabinet Type B

Samsung OfficServ 2/2 Slot Expansion Cabinet Type B 2 Dedicated slots for T1/PRI and the SVMi-8E Voice Mail card. 2 Universal Slots that support any combination of station or trunk cards.

Samsung OfficServ 100 3/1 Slot Expansion Cabinet Type A

Samsung OfficServ 100 3/1 Slot Expansion Cabinet Type A has 3 Universal Slots that support any combination of station, trunk or SVMi-4E Voice Mail cards. 1 Dedicated slot for T1/PRI or the SVMi-8E Voice Mail card. Only one of these cards can be installed.

Samsung OfficeServ 100 6-Port Trunk Card

Samsung OfficeServ 100 6-Port Trunk Card. The S6TRK card provides three Caller ID-compatible loop start C.O. interfaces to an existing Samsung Office Serv or 1DCS 16 phone system.

Samsung OfficeServ 100 8-Port Single Line Analog Station Card

Samsung OfficeServ 100 8-Port Single Line Station Card This card provides 8 SLI Single Line Interface ports for the addition of analog phones, a fax machine, or cordless phones and can be installed in any universal slot.

Samsung OfficeServ 8-Port DLI Digital Station Card

The Samsung 8-port digital station card provides 8 1B+D DLI Digital Line Interface ports to add digital telephones to an existing OfficeServe system and can be installed in any universal slot. KDb's cannot be used with this card.

Samsung OfficeServ 100 T1 PRI Card

Samsung OfficeServ 100 T1 PRI Card Note: This card can only be installed when a Type A or Type B expansion cabinet is installed. PRI Includes: T1 Includes 24 channels of: Loop Start Lines DID (Direct Inward Dialing) Ground Start Lines E & M tie lines or two way DID calling with ANI and/or DNIS 23 B Channels + 1 D Channel DID and CIDs

Samsung OfficeServ 2 X 4 Card

Supprts 2 CO lines & 4 Analog Single Line Phones

The Samsung OfficeServ 100 2 X 4 SLI card provides two Caller ID-compatible loop start C.O. interfaces and four SLI single line telephone ports for industry standard single line telephones and the ability to provide a loop disconnect signal. This card can be installed in any universal slot.

Samsung OfficeServ 2 X 4 Card

Supprts 2 lines & 4 Digital Phones

Samsung OfficeServ 2 X 4 Card Supports 2 lines & 4 Digital Phones The 2 X 4 DLI card provides two Caller ID-compatible loop start CO line interfaces and four 1B+D DLI digital station ports. KDb's (daughter boards) cannot be used with this card. This card can be installed in any universal slot.
